PRODUCT

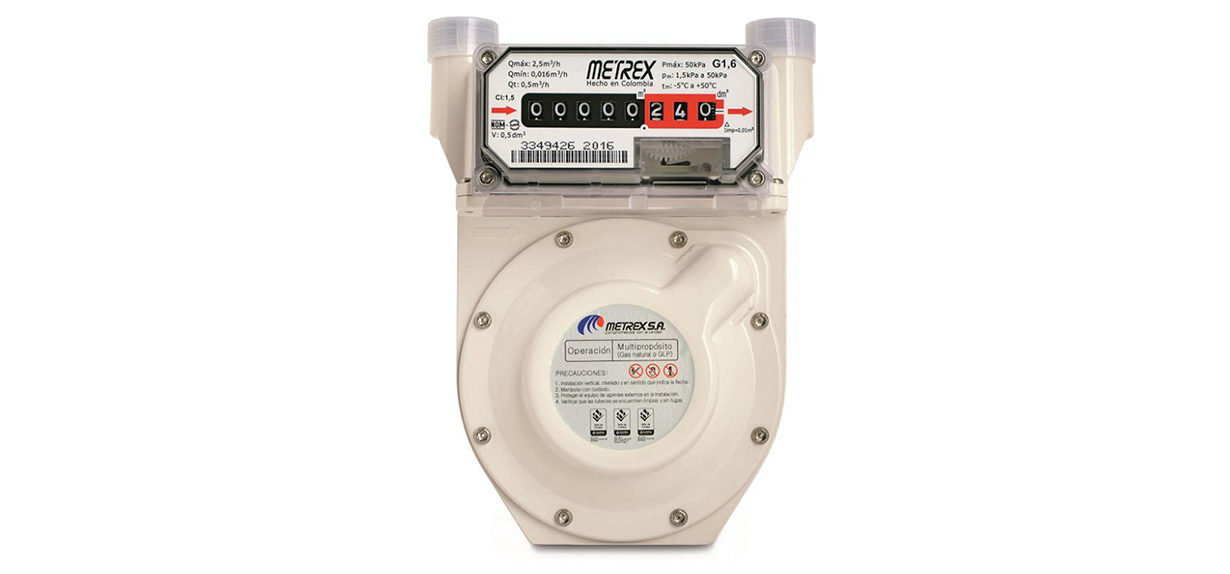

Gas meterBRAND
MetrexMODEL
G1,6DATA SHEET
Product Characteristics
| Product: | Diaphragm gas type measurer |
| Gas Type: | Natural Gas, GLP (propane) or non corrosives gas |
| Brand: | METREX |
| Model: | G1,6 |
| Measurer Type: | Diaphragm |
| Measuring Mechanism: | Rotary Valve |
| Denomination (OIML): | G1,6 |
| Peak Flow: | 2,5 m³/h |
| Minimun Flow: | 0,016 m³/h |
| Maximun Pressure: | 50 kPa o 7,2 PSIG |
| Cyclical Volume: | 210 mm height 158 mm width 118 mm profundidad |
| Distance between centers of threaded conduits: | 130 mm o 110 mm o 100 mm. |
| Conduits thread types: | M26 x 1,5 o G 3/4″B o M25 |
| Odometer: | Digital with 5 whole drums and 3 decimal places |
| Type of reading: | In cubic meters (m³) |
| Remote reading device (Optional): | Provide with compartment to install pulse sensor |
