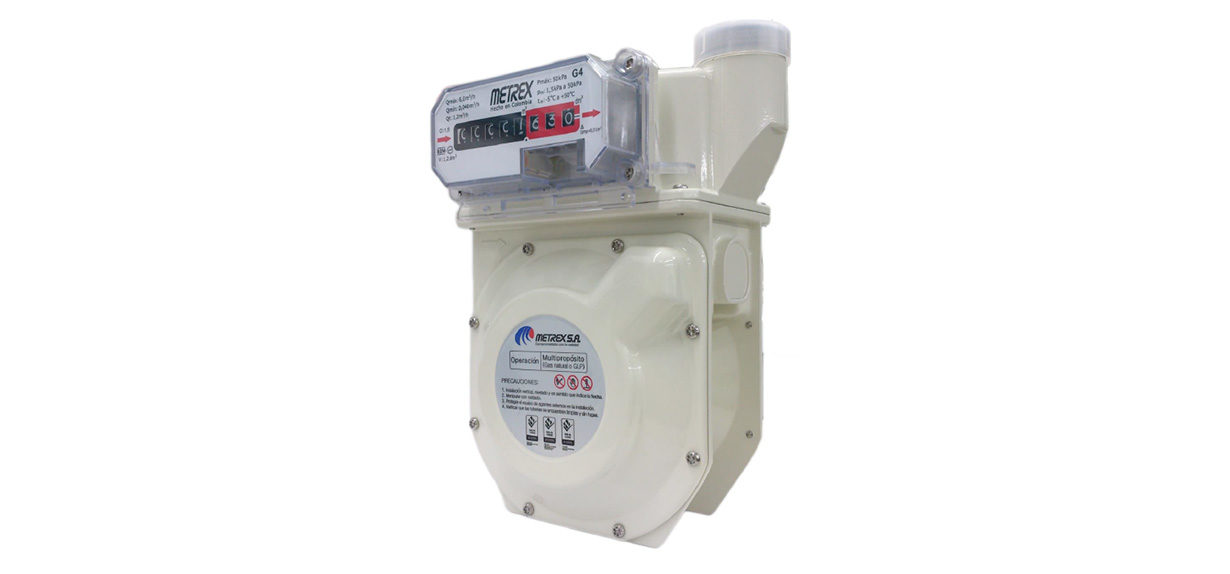

PRODUCT
Gas meterBRAND
MetrexMODEL
G4DATA SHEET
Product Characteristics
| Product: | Diaphragm gas type measurer |
| Gas Type: | Natural Gas, GLP (propane) or non corrosives gas |
| Brand: | METREX |
| Model: | G4 |
| Measurer Type: | Diaphragm |
| Measuring Mechanism: | Rotary Valve |
| Denomination (OIML): | G4 |
| Peak Flow: | 6,0 m³/h |
| Minimun Flow: | 0,040 m³/h |
| Maximun Pressure: | 50 kPa o 7,2 PSIG |
| Cyclical Volume: | 1,2 dm³/Rev |
| Distance between centers of threaded conduits: | 130 mm |
| Conduits thread types: | M34 x 1,5 – M26 x ½ |
| Odometer: | Digital with 5 whole drums and 3 decimal places |
| Type of reading: | In cubic meters (m³) |
| Remote reading device (Optional): | Provide with compartment to install pulse sensor |
